Heavy Machinery Packaging in Pune

Automotive lines, machining equipment, presses, robots, fixtures and test assets require controlled transport positions and a package register that supports the receiving sequence. BENZ can mobilise a project team to the confirmed Pune site to survey and execute the agreed pack.

Heavy machinery packaging
01

Record datums before a line is divided

The survey identifies dimensions, mass, centre of gravity, base geometry, approved lift and restraint points, machine datums, fixtures, utilities and permitted transport positions. Axes, rams, robots and counterbalances are secured only in manufacturer- or owner-approved positions.

Where a line is dismantled, connections and modules can be photographed, match-marked and entered in an asset and package register. Packing order and opening instructions are aligned with the confirmed receiving sequence rather than the order in which space becomes available.

02

Build each transport unit for its route

Plant access, vehicle or container limits, intermediate handling, storage and receiving-site constraints determine package divisions and lifting access. Supports and restraints use verified structural and carrier data. Precision surfaces and electrical assemblies receive compatible preservation based on actual exposure and duration.

For international shipments using regulated solid-wood packaging, treatment and marking follow the destination's applicable ISPM-15 requirements. Processed wood may be exempt, subject to destination rules and customer specification.

03

Pune line-move execution

Once the asset and packing sequence is agreed, BENZ provides the specified preservation, transport supports, cases or skids, marks, closure record and loading assistance at the surveyed plant. The project plan separately allocates disconnection, lifting, heavy transport, permits and installation.

04

Request a Pune machinery-packaging review

Share the line sequence, machine data, handling constraints and destination so tagging, restraint and crating can be scoped.

How the work looks on site

Survey, preservation, crating and load-out photographed on live BENZ projects.

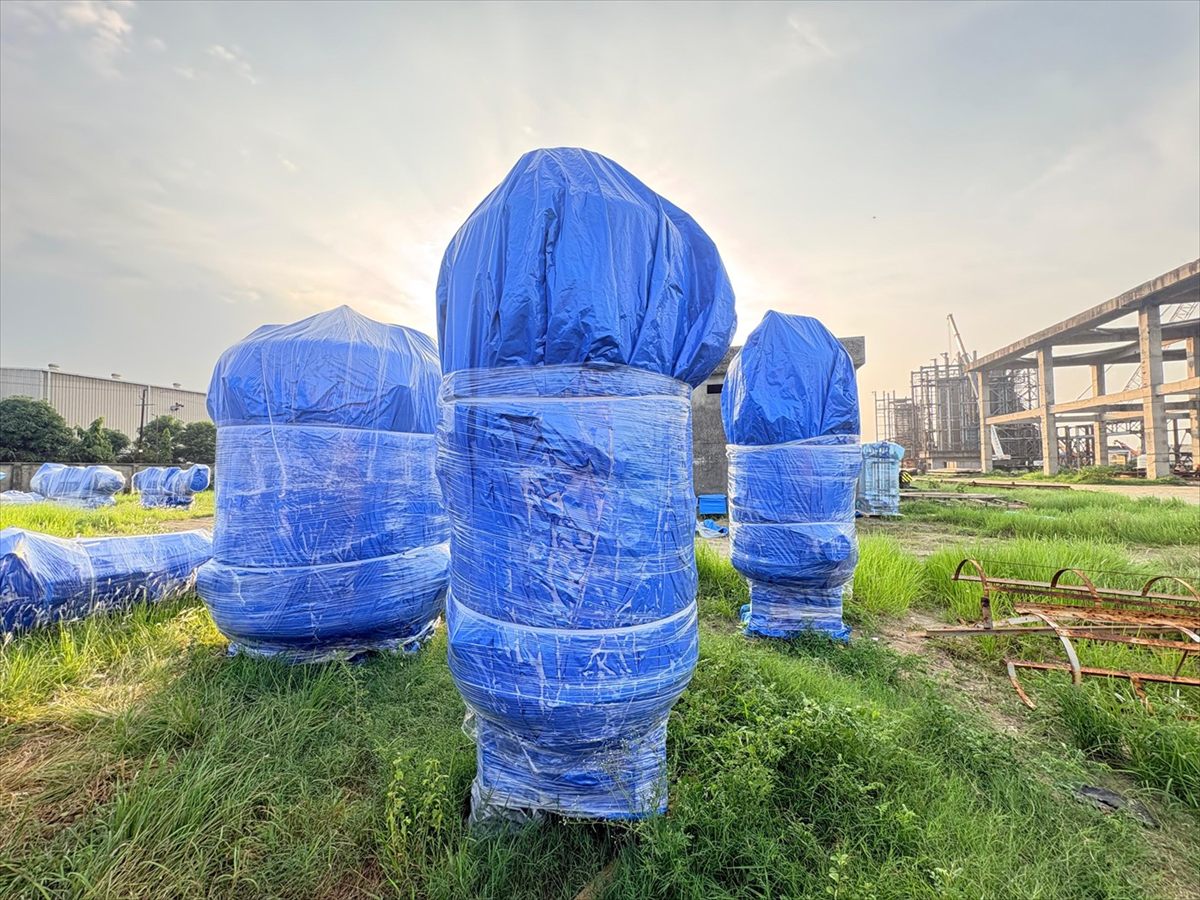

Wrapped process vessels standing in a laydown yard at sunrise, Pune
First light over a laydown yard of wrapped vessels awaiting despatch.

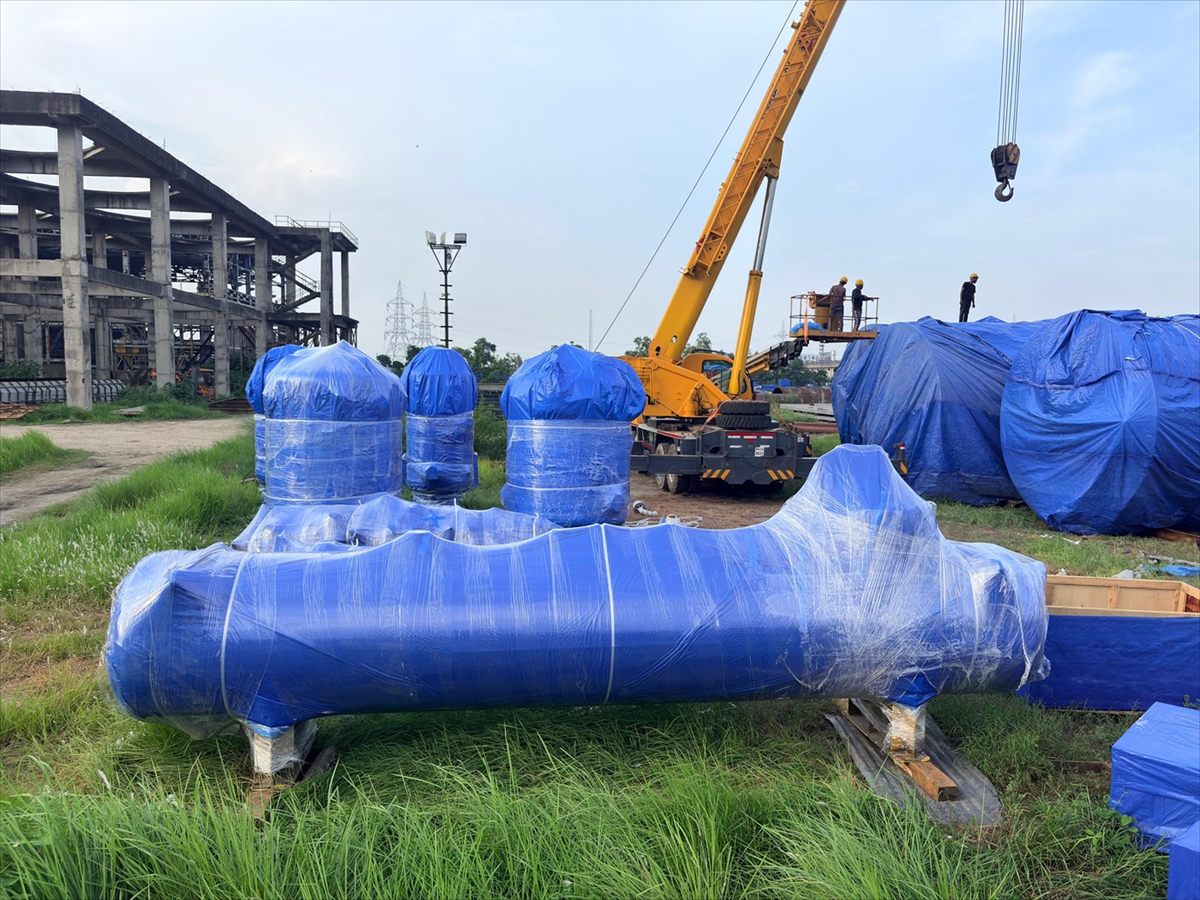

Fabricated manifold header wrapped in place at a project site with crane standing by
A fabricated manifold header wrapped in place at the project site, crane standing by.

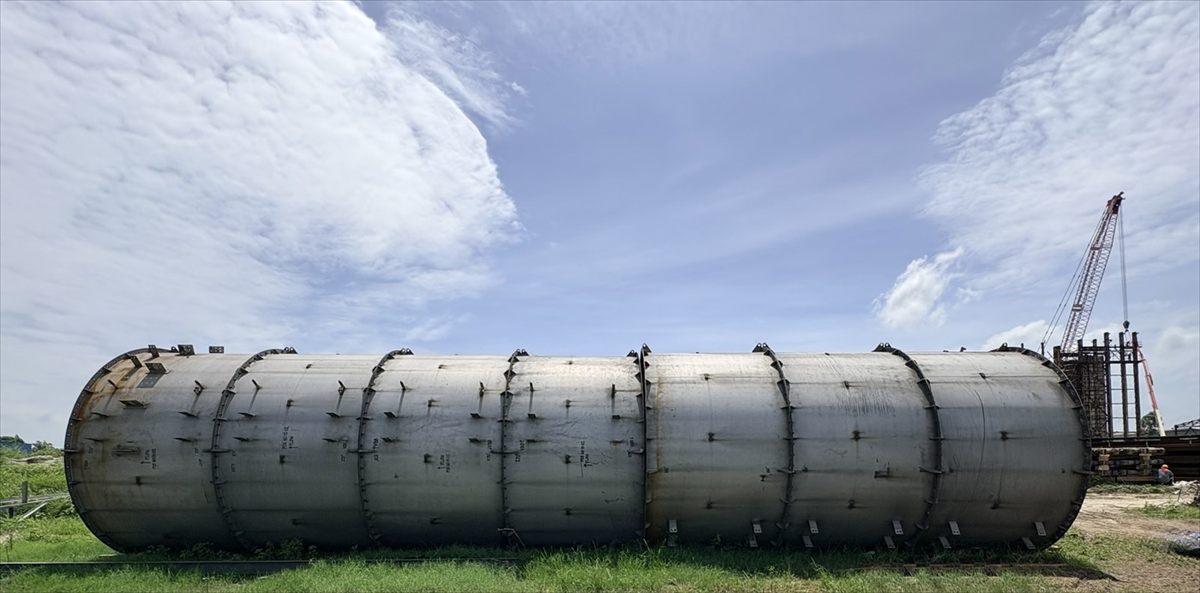

Fabricated pressure vessel shell in the laydown yard before preservation wrapping
A fabricated pressure vessel shell in the laydown yard, before preservation wrapping begins.

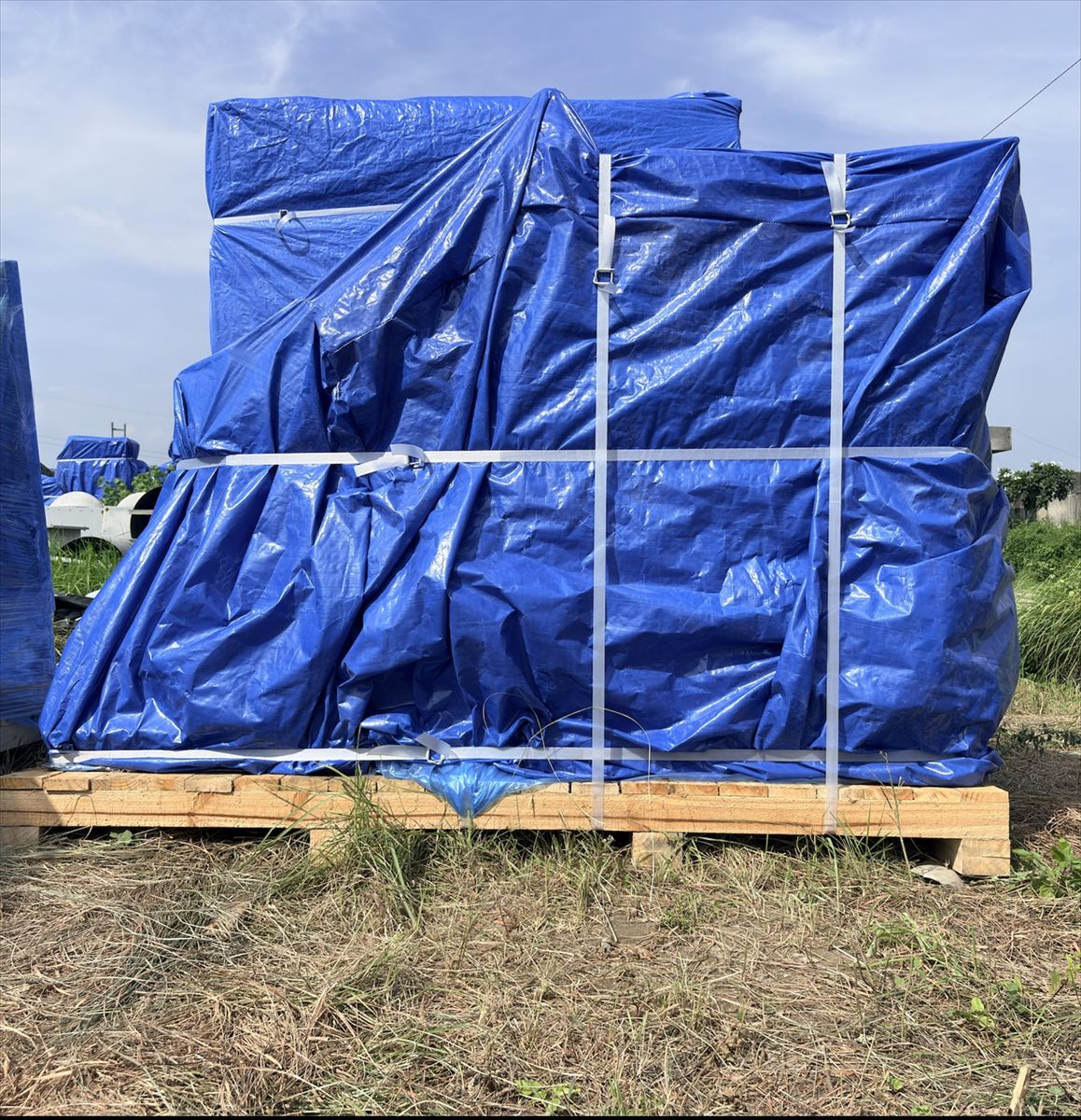

Process equipment tarpaulin wrapped and cross strapped on a timber skid base, Pune
Process equipment tarpaulin-wrapped and cross-strapped over a load-rated timber skid base.

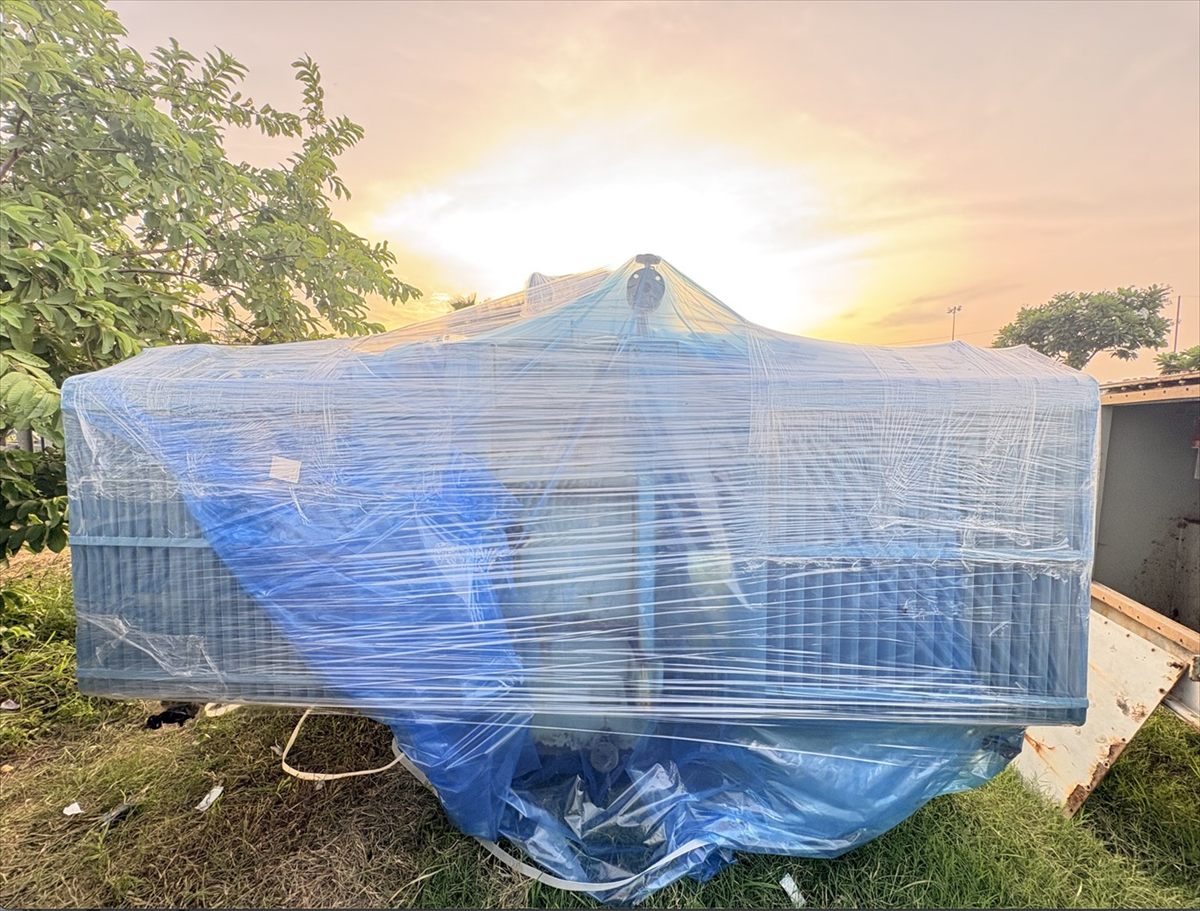

Machinery shrink wrapped and sealed for open yard storage
Shrink-wrapped and sealed for open-yard storage, built to hold through a full monsoon.
Large agitator vessel film wrapped on timber bearers
A large agitator vessel film-wrapped on timber bearers, ready for extended outdoor standing.

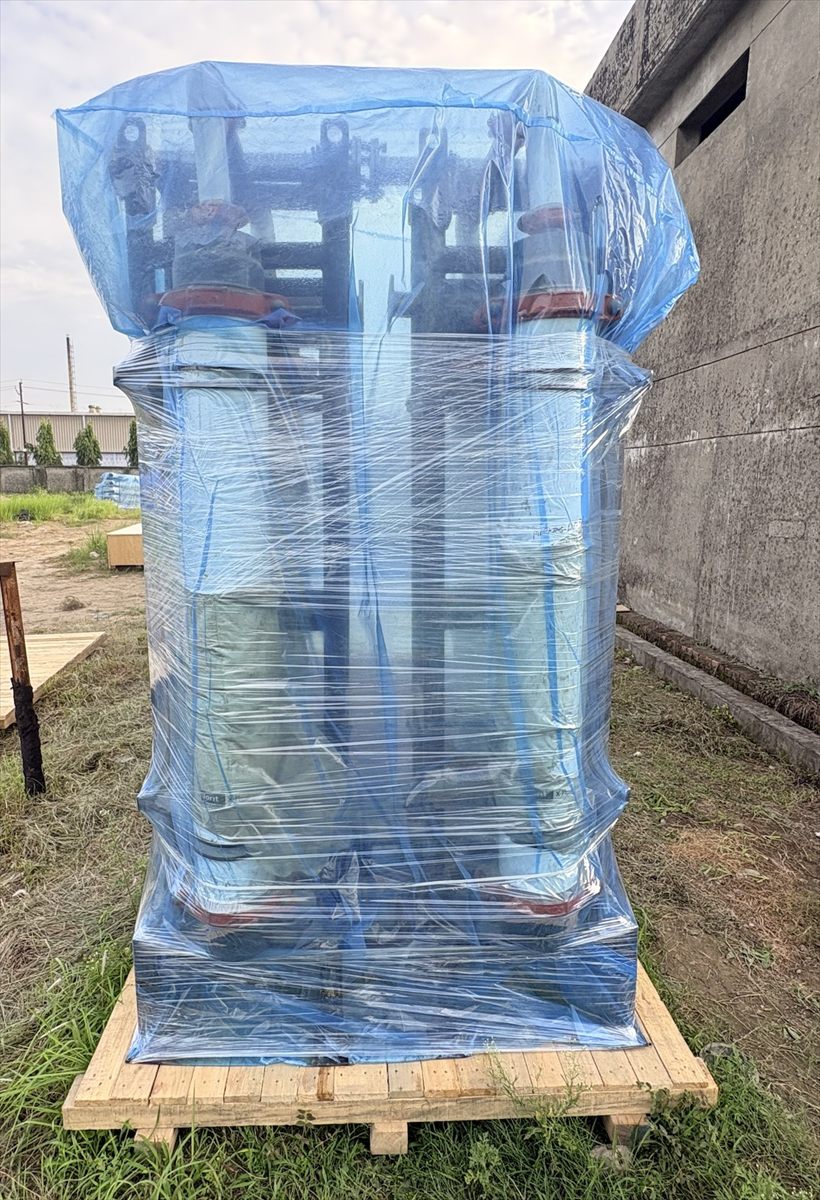

Heat exchanger columns wrapped and secured upright on a shared skid
Heat exchanger columns wrapped and secured upright on a shared skid.

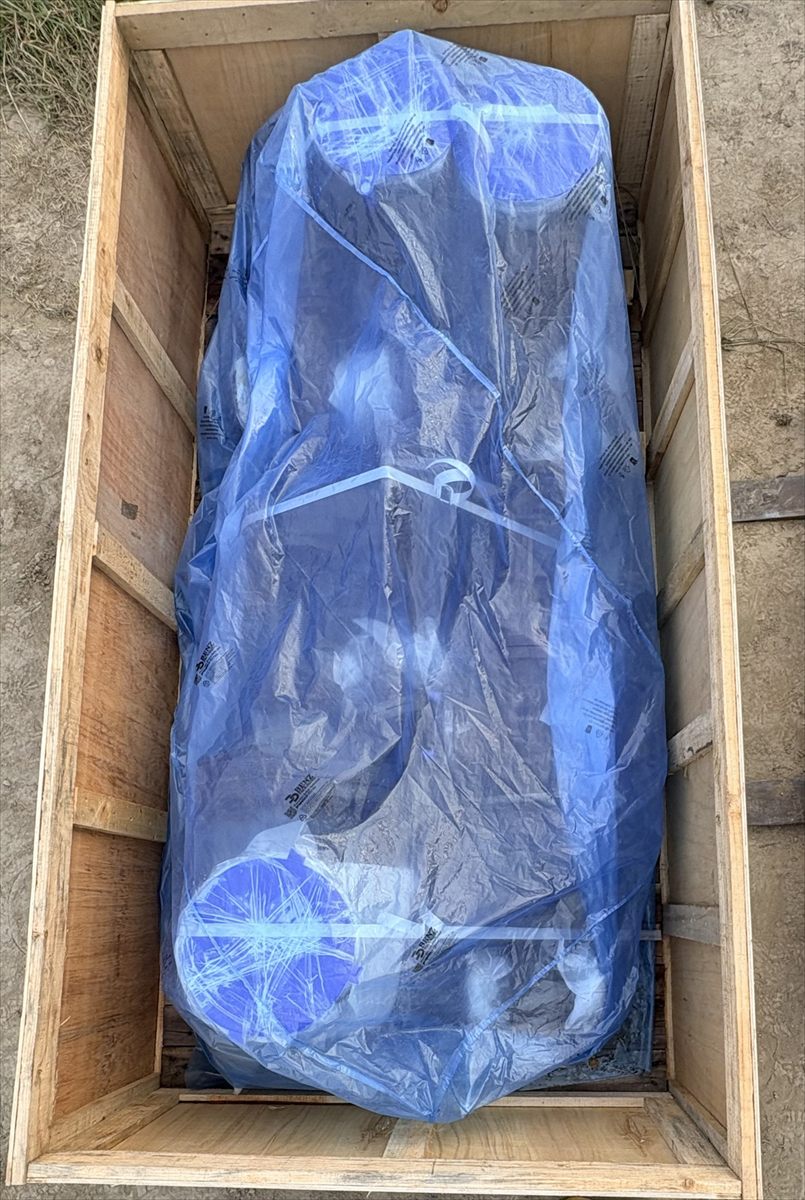

Machine seated inside a wooden export crate, wrapped and blocked before closure
Machine seated inside its wooden export crate, wrapped and blocked before the lid goes on.

Plan the pack with BENZ

Send the site, equipment list, destination and movement window and we will scope the work.
