Why Medical Equipment Requires Specialized Packaging
Medical diagnostic equipment — MRI machines, CT scanners, X-ray systems, ultrasound units, and laboratory instruments — represents some of the most sensitive and expensive equipment in any industry. A single 1.5T MRI machine costs ?8–15 crores. A 128-slice CT scanner costs ?5–10 crores. When equipment of this value moves — whether for hospital relocation, equipment upgrade disposal, or international procurement — the packaging must be absolutely perfect.
Standard industrial packaging fails medical equipment for three critical reasons:
- Extreme shock sensitivity: MRI superconducting magnets can quench (lose superconductivity catastrophically) from vibrations that wouldn't affect a CNC machine
- ESD vulnerability: Circuit boards in CT gantry control systems, X-ray generators, and ultrasound processors are destroyed by static discharges as small as 100 volts
- Regulatory complexity: Medical equipment may contain radioactive sources (CT tubes), cryogenic fluids (MRI helium), or hazardous materials that require special packaging declarations
This guide covers BENZ Packaging's specialized approach to medical equipment packaging, drawing from our experience serving hospitals and medical equipment distributors across Delhi, Hyderabad, Chennai, and Mumbai.

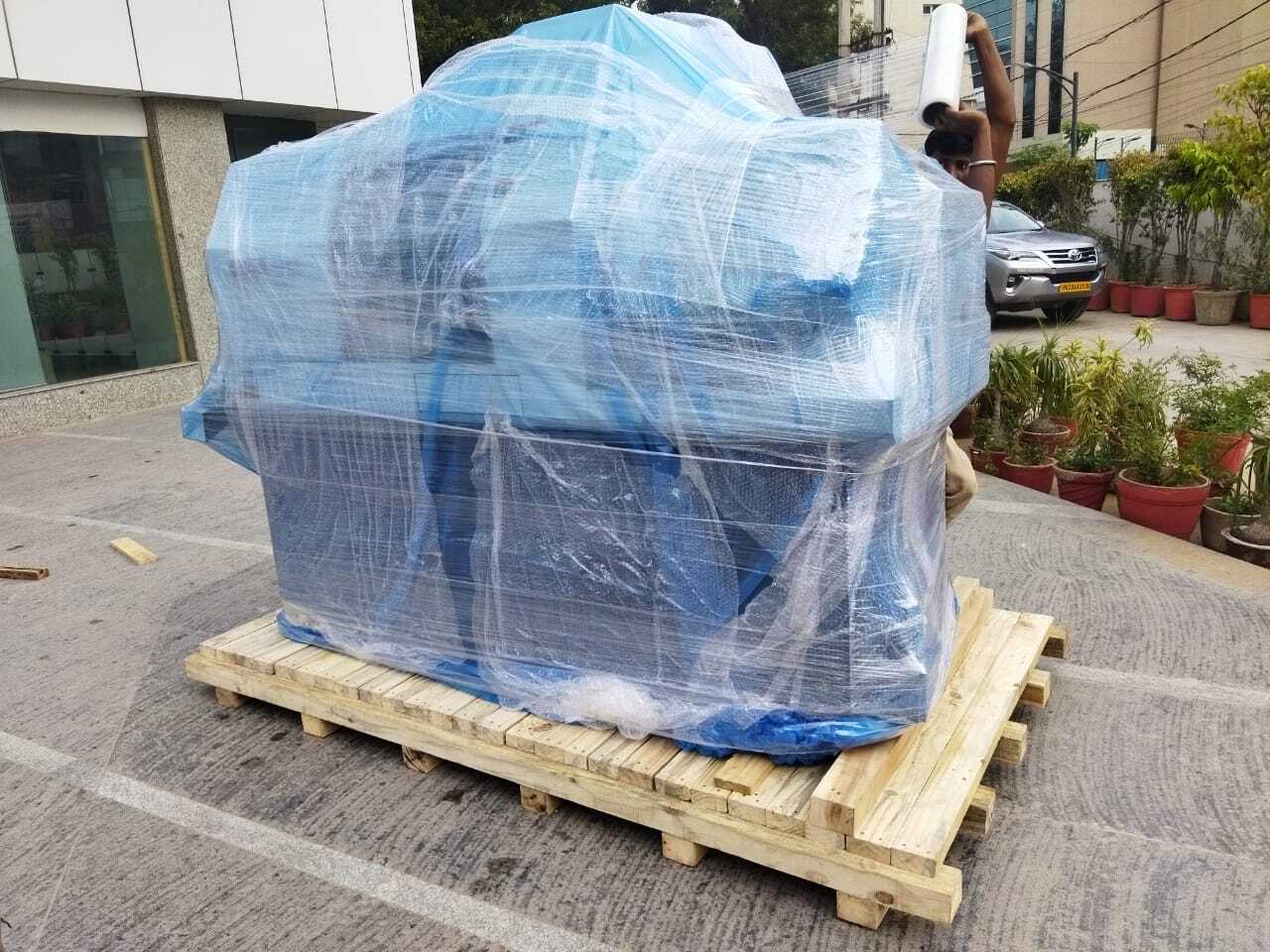

MRI Machine Packaging: The Most Complex Packaging Challenge
An MRI (Magnetic Resonance Imaging) machine is not just heavy — a 3T MRI system weighs 8,000–12,000 kg — it contains a superconducting magnet cooled by liquid helium at –269°C. This creates packaging challenges found nowhere else in industrial logistics.
Superconducting Magnet Considerations
- Short-distance relocation (same building/campus): The magnet can remain energized if the MRI stays powered throughout the move. The helium cold head must continue running. This limits the move to carefully controlled, slow-speed transport on air cushion systems or specialized medical equipment movers.
- Long-distance / export shipping: The OEM service team (Siemens, GE Healthcare, Philips) performs a controlled ramp-down of the magnetic field. The helium level must be verified and may need topping up. BENZ coordinates this decommissioning process before our packaging team takes over.
MRI Packaging Process
- OEM decommissioning coordination: Arrange for the OEM service engineer to ramp down the magnet and verify helium levels
- Floor load assessment: MRI rooms have reinforced floors. Verify the transit route and destination floor can support the MRI weight
- RF shielding protection: The RF cage components (copper mesh panels) must be carefully disassembled, labeled, and packed in padded cases
- Patient table and covers: Remove and pack separately in foam-lined boxes
- Gradient coils and electronics: Wrap in BENZ Anti-Static VCI Film — provides simultaneous ESD protection and corrosion prevention
- Magnet cryostat: The main magnet assembly is lifted onto a vibration-isolated wooden platform with air-spring or rubber isolation mounts. Lateral movement is prevented by padded restraints.
- Barrier film and climate control: The entire assembly is sealed in 4-layer aluminium barrier film with Propadry desiccants and humidity indicator cards
- Transit monitoring: Impact indicators and tilt indicators installed. For high-value MRI systems, GPS-enabled data loggers track shock, tilt, temperature, and humidity throughout transit
CT Scanner Packaging
CT (Computed Tomography) scanners weigh 2,000–4,000 kg and present their own challenges:
- Gantry assembly: The rotating gantry contains the X-ray tube and detector array. It must be locked in position using the OEM-specified shipping brackets before packaging. Any internal rotation during transit destroys alignment.
- X-ray tube: CT tubes are fragile and extremely expensive (?15–40 lakhs). The tube must be in its shipping orientation (usually horizontal) as specified by the manufacturer.
- Detector array: Protected with anti-static VCI film and foam cushioning. Detectors are sensitive to both shock and ESD.
- Patient couch: Separated from the gantry and packed in its own box with foam padding
- Control computer and UPS: Packed in ESD bags with desiccants in separate labeled boxes
The entire CT scanner assembly goes into a custom wooden crate with foam lining at all contact points, VCI Film enclosure, and barrier film for export shipments.
Other Medical Equipment Packaging
X-Ray Systems (Fixed & Mobile)
- Lock the X-ray arm in its transport position
- Remove and separately pack the X-ray tube (high-value fragile component)
- Protect the flat panel detector with anti-static VCI film + foam cradle
- Pack the generator control unit in an ESD-safe VCI-protected box
Ultrasound Machines
- Remove and pad-protect all transducer probes (most fragile and expensive component)
- Wrap the main unit in anti-static VCI film
- Pack in foam-lined box with desiccants
- Ultrasounds are comparatively lightweight (100–300 kg) but extremely sensitive to impact
Laboratory & Analytical Equipment
- Spectrometers, chromatographs, and mass spectrometry systems require vibration-isolated packaging
- Glass columns and sample chambers need individual foam protection
- Calibration gases and chemical reagents must be packed per IMDG/IATA dangerous goods regulations
- Temperature-sensitive reagents may require cold-chain packaging
Heavy Printing Machine Packaging
Heavy printing presses — offset, flexographic, and digital — share many characteristics with CNC machines: precision rollers, ink systems that must be drained, and electronic control systems sensitive to moisture and vibration.
- Ink system: Complete drainage and flushing of all ink channels, fountains, and supply lines
- Precision rollers: Protect with VCI Crepe Paper — conforms to the cylindrical surface and prevents roller scoring
- Impression cylinder: The most critical component. Wrap with VCI Paper and foam protection to prevent any surface contact
- Control panels and computers: Anti-static VCI Film enclosure with desiccants
- Frame sections: For large web-offset presses, the frame may need sectional disassembly — each section labeled and packed on individual skids
Tank Packaging
Industrial storage tanks, process vessels, and reactor tanks require specialized packaging approaches:
- Internal protection: VCI Emitters placed inside the tank provide vapor-phase corrosion protection for the entire internal surface volume — far more effective than attempting to coat internal surfaces
- Nozzle and flange protection: All openings sealed with VCI-treated blanking plates and gaskets
- External surface: VCI Paper wrapping + VCI Film for complete coverage
- Transport: Secured on saddle supports or structural cradles designed for the tank diameter and weight
ESD Protection: Why Anti-Static VCI Film Is Essential
Standard VCI film protects against corrosion but does not address electrostatic discharge. Medical electronics, printing machine PLCs, and precision sensor systems require dual protection — which is exactly what BENZ Anti-Static VCI Film provides:
| Property | Standard VCI Film | Anti-Static VCI Film |
|---|
| Corrosion Protection | ? Yes | ? Yes |
| ESD Protection | ? No | ? Yes (surface resistivity 10?–10¹¹ O) |
| Use Case | Standard machinery | Electronics, medical devices, sensors |
| Eliminates Need For | Oil-based anti-rust | Separate ESD bags + anti-rust = single solution |
Frequently Asked Questions
How do you package an MRI machine for shipping?
MRI packaging requires OEM coordination for magnet ramp-down, a vibration-isolated custom crate with air-spring mounts, anti-static VCI film for all metal/electronic components, barrier film with desiccants, and impact/tilt monitoring. Read the full export packaging methodology.
Can an MRI machine be moved without quenching the magnet?
Yes, for short-distance relocations within the same campus. The MRI must remain powered with the helium cooling system active. For long-distance or export moves, a controlled ramp-down is necessary — BENZ coordinates with Siemens, GE, and Philips service teams.
What is ESD-safe packaging for medical electronics?
ESD-safe packaging prevents static electricity from damaging sensitive components. BENZ Anti-Static VCI Film provides both ESD protection and corrosion inhibition in a single film — eliminating the need for separate ESD bags.
How much does MRI machine packaging cost?
MRI packaging starts from ?2,00,000 depending on MRI type, distance, and whether OEM decommissioning is included. Contact BENZ for a detailed assessment.
Does BENZ package CT scanners and X-ray machines?
Yes. We package all diagnostic imaging equipment — CT scanners, X-ray systems, C-arm units, ultrasound machines, and linear accelerators — each with equipment-specific packaging protocols.
