Why CNC Machines Need Specialized Packaging
A CNC (Computer Numerical Control) machine is not just heavy equipment — it is a precision instrument that manufactures parts to micron-level tolerances. The components that deliver this precision — the spindle, ballscrews, linear guides, glass scales, and servo motors — are also the most vulnerable to damage during shipping.
Standard industrial packaging fails CNC machines because it does not address the three threats that specifically destroy precision: corrosion (rust on ballscrews and bearing surfaces), shock (impact damage to spindle bearings and glass scales), and moisture (condensation inside electrical cabinets and servo drives). BENZ Packaging's 10-step process eliminates all three.
This guide is based on the exact process our packaging engineers use when handling CNC machines at automotive plants in Pune, precision engineering facilities in Chennai, and OEM factories across the Gurugram-Manesar industrial corridor.
The 10-Step CNC Machine Packaging Process
Step 1: Machine Lockdown
Before any packaging begins, the CNC machine must be mechanically secured:
- Engage all axis locks (X, Y, Z, and rotary axes if applicable)
- Lock the spindle using the manufacturer's spindle lock mechanism
- Secure the turret or tool changer in the home position
- For VMCs: position the table to its lowest point. For HMCs: center the pallet
- Retract all probes, tool-setters, and chip conveyors
Why this matters: Unsecured axes can shift during crane lifting or truck transport, causing ballscrew damage and loss of home position reference.
Step 2: Drain All Fluids
Every fluid reservoir must be completely drained:
- Coolant tank: Drain and flush. Residual coolant corrodes internal surfaces and breeds bacteria
- Hydraulic oil: Drain from the hydraulic power unit and all lines
- Way oil: Drain from the automatic lubrication system
- Chip conveyor coolant: Drain separately
After draining, apply a thin coat of BENZ Short-Term Rust Preventive Oil to exposed way surfaces and the spindle taper as an additional corrosion safety layer.
Step 3: Electrical Disconnection & Labeling
Disconnect all external connections:
- Main power cable (label the phase sequence)
- Servo motor cables and encoder cables
- Coolant pump connections
- Pneumatic lines
- Network/Ethernet cables for DNC systems
Photograph all connections before disconnecting. Coil cables neatly and secure them to the machine body with cable ties.
Step 4: Remove Loose Components
Remove and pack separately in labeled, VCI-protected boxes:
- Tool holders, collets, and cutting tools
- Chucks, steady rests, and tailstocks (for lathes)
- Fixtures, vises, and workholding accessories
- CNC controller pendant/handheld unit
- Manuals, documentation, and spare parts kits
Step 5: Protect Critical Precision Surfaces
This is the step that separates professional CNC packaging from amateur packing. Each precision component requires specific protection:
- Spindle and taper: Insert a taper plug, then wrap the entire spindle nose with VCI Crepe Paper (stretchable, conforms to the complex geometry)
- Ballscrews: Wrap exposed ballscrew sections with VCI Plain Paper
- Linear guides and ways: Cover with VCI Paper strips, secured with VCI-safe tape
- Glass scales: Protect with foam wrap over VCI paper — glass scales are extremely fragile and cannot be replaced if cracked
- Chuck jaws / tool turret: Wrap individual surfaces with VCI Crepe Paper
Step 6: VCI Film Enclosure
Enclose the entire CNC machine in BENZ Multi-Metal VCI Film. The film is heat-sealed at all seams to create a fully enclosed corrosion-free microenvironment. For CNC machines with mixed metals (steel frame, aluminum covers, brass fittings, copper wiring), multi-metal VCI film protects all metal types simultaneously.
Place VCI Emitters inside the electrical cabinet and hydraulic compartment for additional vapor-phase protection in enclosed spaces.

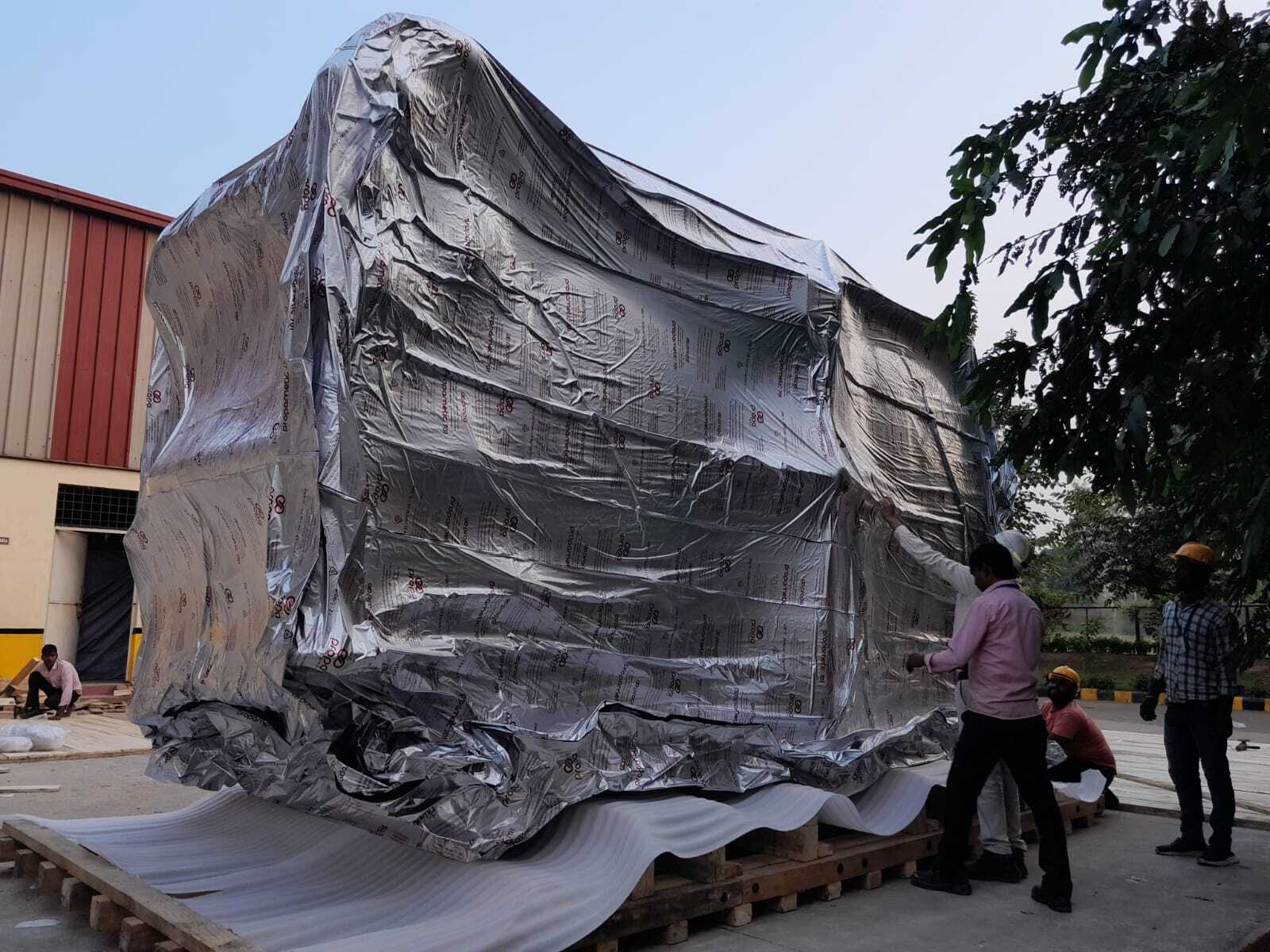

Step 7: Aluminium Barrier Film Sealing (Export Only)
For international shipments, wrap the VCI-enclosed machine in BENZ 4-Layer Aluminium Barrier Film. This creates a complete moisture barrier with a WVTR of less than 0.01 g/m²/day — essential for surviving 30–60 days of ocean transit where container humidity exceeds 90% RH.
Step 8: Add Desiccants
Place BENZ Propadry Container Desiccants inside the barrier film package before final sealing. Desiccants absorb residual moisture and maintain the internal humidity below 40% RH. For a typical CNC VMC, use 2–3 desiccant units positioned near the spindle head, electrical cabinet, and hydraulic unit.
Step 9: Foam Cushioning at Contact Points
Install EPE Foam blocks at all points where the machine contacts the wooden crate base. Special attention to:
- Machine base mounting feet (use anti-vibration foam pads)
- Overhanging components (spindle head, column, control pendant)
- Electrical cabinet corners
Step 10: ISPM-15 Wooden Crate & Final Lashing
Place the machine in a custom-built ISPM-15 certified wooden crate. Bolt the machine base directly to the crate floor using lag bolts. Install cross-bracing to prevent lateral movement. Attach impact indicators and tilt indicators to the external crate walls.
5 Mistakes That Destroy CNC Machines In Transit
- Not draining coolant: Residual coolant corrodes from the inside out. We've seen ?40-lakh VMCs ruined by bacteria-laden coolant left in tanks.
- Using standard bubble wrap instead of VCI: Bubble wrap provides zero corrosion protection. Within 7 days of ocean transit, bare steel surfaces develop visible rust.
- Skipping the barrier film for exports: Without barrier film, container moisture penetrates VCI film within 2 weeks. The VCI chemistry gets overwhelmed by continuous high-humidity exposure.
- Not locking axes before lifting: An unlocked Z-axis can drop during crane lifting, destroying the ballscrew nut and potentially cracking the spindle housing.
- Reusing old wooden crates: Used crates may have compromised structural integrity and lost ISPM-15 certification. Always use fresh, certified crates.
CNC Machine Packaging for Domestic vs Export
| Parameter | Domestic (Road) | Export (Sea) |
|---|
| VCI Protection | VCI Paper + VCI Film | VCI Paper + VCI Film + Barrier Film + Desiccants |
| Wooden Crate | Plywood or Pinewood (ISPM-15 optional) | ISPM-15 mandatory, heat-treated, IPPC stamped |
| Indicators | Optional | Impact + Tilt + Humidity indicators mandatory |
| Transit Time | 1–5 days | 30–60 days |
| Cost Range | ?25,000–?1,50,000 | ?75,000–?5,00,000+ |
Frequently Asked Questions
How much does CNC machine packaging cost in India?
CNC machine packaging ranges from ?25,000 for small VMCs (domestic) to ?5,00,000+ for large 5-axis machining centers (export). Cost depends on machine dimensions, weight, destination, and required protection level. Contact BENZ for a free assessment.
Can a CNC machine be shipped without draining coolant?
No. Coolant must always be drained. Residual coolant corrodes internal surfaces, promotes bacterial growth, and can leak during transit causing electrical damage and contaminating VCI protection.
How long does VCI protection last on a packed CNC machine?
With proper sealing using VCI film + barrier film + desiccants, protection lasts 3–5 years. For domestic shipping (1–2 weeks), VCI paper alone is sufficient. For ocean freight (30–60 days), the full 7-layer system is recommended.
What happens if a CNC machine is not properly packed?
Spindle rust, ballscrew corrosion, electrical damage from condensation, glass scale fogging, and alignment loss from shock. Repair costs typically exceed 30–50% of the machine value, and precision recalibration may be impossible after corrosion damage.
