What Is Export Worthy Packaging?
Export worthy packaging — also called seaworthy packaging, marine packaging, or ocean freight packaging — is a multi-layer industrial protection system engineered to keep heavy machinery rust-free, moisture-free, and damage-free during international shipping. Unlike standard domestic packaging, export worthy packaging must survive 30–60 days of ocean transit through extreme humidity (90%+ RH), salt-laden sea air, continuous vibration, and temperature swings from –5°C to 65°C inside a steel container.
For manufacturers exporting CNC machines, transformers, turbines, generators, press equipment, injection moulding machines, or any heavy industrial equipment from India, getting the packaging wrong means catastrophic financial losses — replacement costs, warranty claims, insurance disputes, and permanent damage to customer relationships.
This guide documents the exact 7-layer seaworthy packaging methodology used by BENZ Packaging to protect heavy machinery across 20+ export destinations from our IMT Manesar, Gurugram headquarters.
The 7-Layer Seaworthy Protection System
Every piece of heavy machinery that leaves India through BENZ Packaging is protected by a systematically engineered 7-layer defense. Each layer addresses a specific threat vector — and skipping even one layer can result in transit damage.
Layer 1: VCI Paper Wrapping (Vapor-Phase Corrosion Shield)
The innermost layer. BENZ VCI Paper — manufactured using patented Propatech VCI Technology from Propagroup, Italy — is wrapped directly around all exposed metal surfaces. The VCI (Volatile Corrosion Inhibitor) compounds in the paper release invisible protective molecules that settle on the metal, forming a self-healing barrier just 1–2 molecules thick. This vapor-phase protection reaches deep cavities, threaded holes, hydraulic ports, and internal channels that no oil or coating can access.
Layer 2: VCI Poly Film Enclosure (Physical + Chemical Barrier)
BENZ Multi-Metal VCI Film is heat-sealed around the entire machine, creating a fully enclosed microenvironment. This serves a dual purpose: the polyethylene provides a physical moisture barrier while the embedded VCI compounds provide continuous vapor-phase corrosion protection throughout the transit period. For machines with mixed metals (steel frames, aluminum covers, copper wiring), multi-metal VCI film protects all metal types simultaneously without galvanic interaction.
Layer 3: Aluminium Barrier Film Vacuum Sealing (Moisture Fortress)
BENZ 4-Layer Aluminium Barrier Film provides the ultimate moisture impermeability. This composite film — polyethylene + aluminium foil + scrim reinforcement + polyester — delivers a water vapor transmission rate (WVTR) of less than 0.01 g/m²/day. For ocean freight, where container humidity routinely exceeds 90% RH and "container rain" (condensation dripping from the container ceiling) is a constant threat, this layer is non-negotiable.
Layer 4: Container Desiccants (Active Humidity Control)
BENZ Propadry Container Desiccants are placed inside the sealed barrier film package. Each desiccant unit absorbs up to 300% of its own weight in moisture, maintaining the internal humidity below 40% RH (below the corrosion threshold). For a standard 20-foot container, we use 6–8 desiccant units strategically positioned around the machinery to ensure uniform humidity control.
Layer 5: EPE/EVA Foam Cushioning (Shock & Vibration Damping)
EPE Foam and EVA Foam panels are placed at all contact points between the machine and the wooden crate. This layer absorbs the continuous low-frequency vibrations from ocean swells and the high-impact shocks from crane loading/unloading operations. Critical components like CNC spindles, servo motors, and precision glass scales receive additional foam cushioning blocks.

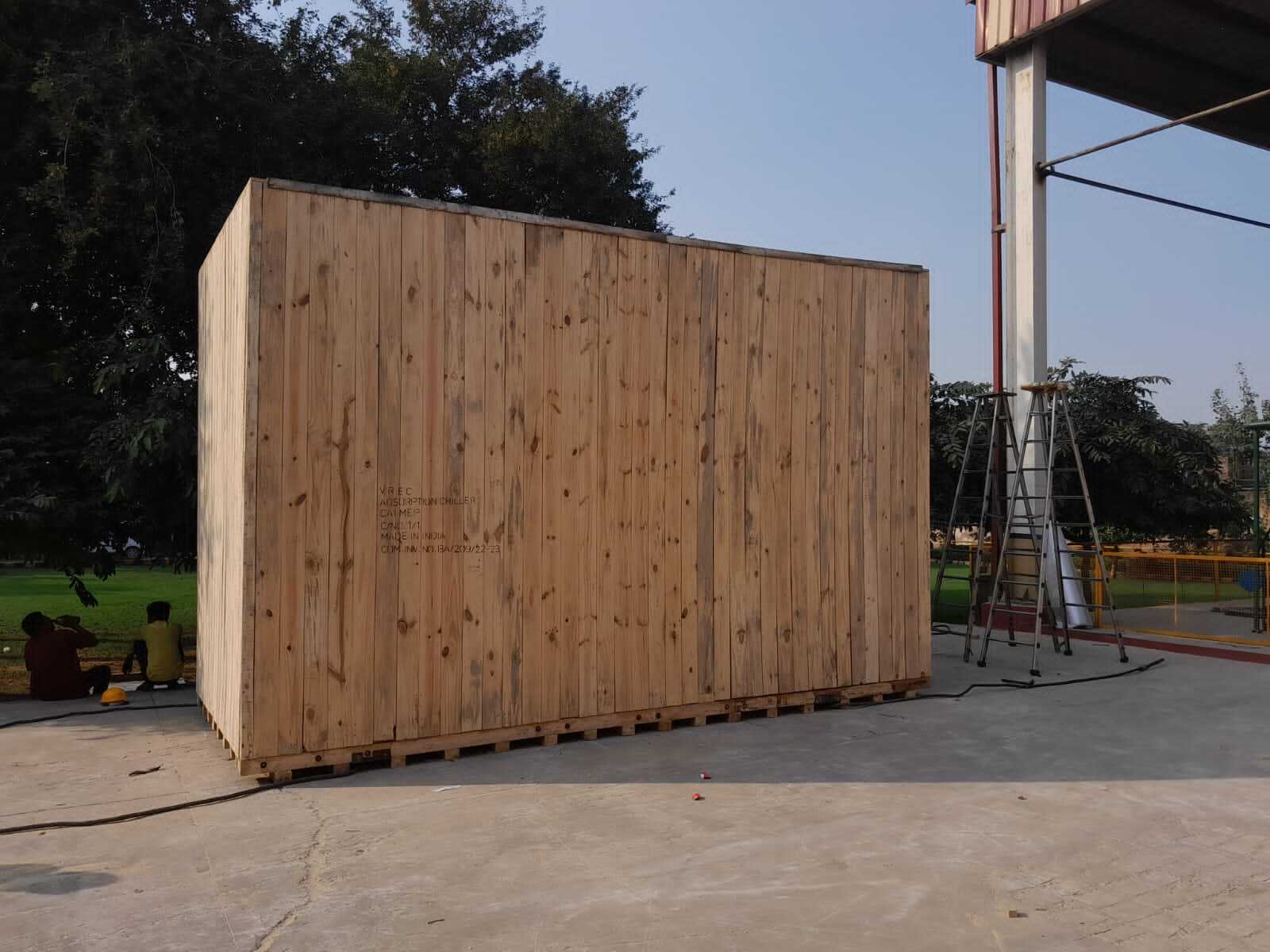

Layer 6: ISPM-15 Heat-Treated Wooden Crate (Structural Protection)
The outermost structural shell. BENZ Plywood Boxes and Pinewood Crates are custom-built to the exact dimensions of each machine. All solid wood components are heat-treated to a core temperature of 56°C for 30 minutes per ISPM-15 international phytosanitary standards and carry the IPPC stamp with India's country code (IN). Internal bracing, blocking, and bolting prevent any movement of the machine within the crate during transit.
Layer 7: Container Lashing + Monitoring (Final Mile Security)
The crate is lashed inside the shipping container using steel straps, turnbuckles, and corner braces per CTU Code (Code of Practice for Packing of Cargo Transport Units) guidelines. BENZ Impact Indicators and tilt indicators are installed to detect any mishandling during loading, transit, or unloading — providing documented evidence for insurance claims if needed. Humidity Indicator Cards (HICs) are placed inside the barrier film to verify the internal humidity remained below safe levels throughout the journey.
Equipment-Specific Packaging Requirements
Different types of heavy machinery have different vulnerabilities. Here is how BENZ tailors the packaging approach for each equipment category:
| Equipment | Key Vulnerabilities | BENZ Packaging Solution |
|---|
| CNC Machines | Precision spindle, ballscrews, linear guides, glass scales | VCI Crepe Paper on spindle + VCI Film + Barrier + Foam isolation mounts + Custom crate |
| Lathe Machines | Precision headstock, tailstock alignment, bed ways | VCI Paper on bed ways + Anti-vibration foam + Bolted crate base |
| Press Machines | Extreme weight (20–80 tons), hydraulic systems | Hydraulic drain + VCI Film + Heavy-duty wooden skids + Steel lashing |
| Injection Moulding | Precision mould platens, tie bars, hydraulic unit | VCI Paper on platens + Barrier film + Foam + Open-top crate |
| Transformers | Oil-filled, copper windings, porcelain bushings | Oil drain/nitrogen blanket + VCI HD Paper + Barrier + Custom cradle |
| Boilers | Refractory lining, pressure vessels, tube banks | VCI Emitters inside + Barrier film + Desiccants + Structural bracing |
| Turbines | Precision blades, shaft alignment, bearing journals | VCI Crepe on blades + VCI Film + Foam isolation + Nitrogen purge |
| Generators / DG Sets | Alternator windings, fuel system, control panel | Fuel drain + VCI Film + Barrier + Desiccants + Bolted crate |
| Compressors | Precision rotors, oil system, cooler coils | Oil drain + VCI Film + Barrier + Foam + Custom crate |
| Conveyor Systems | Long assemblies, rollers, motor drives | Sectional disassembly + VCI Paper on shafts + Multiple crates |
| Industrial Pumps | Impeller, mechanical seals, shaft | VCI Crepe on impeller + VCI Film + Foam + Wooden box |
| MRI / Medical Equipment | Superconducting magnet, helium cooling, extreme shock sensitivity | Shock-mounted crate + Anti-static VCI Film + Climate-controlled barrier |
BENZ Packaging's 5-Step Process
Whether you're shipping a single CNC machine from Gurugram or relocating an entire production line from Pune, our process remains the same:
- Free Site Survey: Our packaging engineers visit your factory floor to assess machine dimensions, weight, fragility, center of gravity, and specific requirements (fluid drainage, component removal, ESD sensitivity).
- Custom Design: We create a CAD-designed packaging solution with material specification, cost breakdown, and transit simulation. You approve the design before we proceed.
- On-Site Packaging: Our trained crew of 20+ members arrives at your facility with all materials, equipment, cranes, and forklifts. We pack your machinery right where it stands — no need to move it to our facility.
- Quality Inspection: A multi-point quality checklist is completed. Impact indicators, tilt indicators, and humidity indicator cards are installed. All seals are verified. Photographic documentation of the entire packaging process is provided.
- Logistics Coordination: We coordinate with your freight forwarder for safe container loading, weight distribution, and lashing. All customs documentation — packing list, ISPM-15 certificate, VCI material safety data sheets — is prepared and included.
ISPM-15 Compliance: What Indian Exporters Must Know
The International Standards for Phytosanitary Measures No. 15 (ISPM-15) is mandatory for all solid wood packaging materials thicker than 6mm used in international trade. India enforces ISPM-15 under the Directorate of Plant Protection, Quarantine & Storage (DPPQS).
Key requirements for exporting heavy machinery from India:
- Heat Treatment (HT): All solid wood must be heated to a core temperature of 56°C for at least 30 minutes. BENZ operates its own kiln-drying and heat treatment facility at IMT Manesar.
- IPPC Stamp: Every treated wooden component must carry the official IPPC mark with India's country code (IN), the treatment facility number, and the treatment code (HT).
- 2026 Update: Starting January 2026, the US CBP enforces a strict hyphen requirement between the country code and facility code in the ISPM-15 mark. Non-compliant marks result in shipment rejection at US ports.
- Plywood Exemption: Manufactured wood products like plywood, particleboard, and OSB are exempt from ISPM-15 as their manufacturing process eliminates pests.
Why VCI Protection Is Critical for Export Machinery
A steel shipping container on an ocean vessel is a corrosion accelerator. During a typical 30-day sea voyage:
- Temperature swings of 15–30°C between day and night cause condensation ("container rain") that drips directly onto machinery
- Ambient humidity inside the container routinely exceeds 90% RH — far above the 40% RH corrosion threshold
- Salt-laden sea air penetrates container gaskets, depositing chlorides that accelerate pitting corrosion on bare steel surfaces
- SO2 and industrial pollutants at port loading zones combine with moisture to create sulfuric acid micro-environments
Without proper VCI protection, rust formation can begin within 24 hours of container sealing. By the time the container reaches its destination, precision machined surfaces — spindles, ball screws, bearing seats, gear teeth — can be irreparably damaged. The BENZ VCI Paper and VCI Film system eliminates this risk entirely by creating a self-sustaining corrosion-free microenvironment inside the sealed package.
BENZ Packaging: India's Heavy Machinery Packaging Leader
With 40+ years of experience, 11 global OEM certifications, and ISO 9001:2015 / ISO 14001:2015 quality standards, BENZ Packaging is India's most trusted name in heavy machinery packaging. Our IMT Manesar (Gurugram) headquarters features a 50,000+ sq ft packaging facility equipped with overhead cranes and heavy-duty forklifts for equipment up to 100+ tons.
We serve all major industrial hubs across India — from automotive plants in Pune and Chennai to steel mills in Jamshedpur, defense establishments in Secunderabad, and power equipment manufacturers in Trichy.
Frequently Asked Questions
What is export worthy packaging for heavy machinery?
Export worthy packaging (also called seaworthy packaging or marine packaging) is an industrial-grade multi-layer protection system designed to keep heavy machinery rust-free, moisture-free, and damage-free during international shipping. It combines ISPM-15 heat-treated wooden crates, VCI anti-corrosion films, aluminium barrier packaging, container desiccants, and shock/tilt indicators into a single engineered solution.
What are the 7 layers of seaworthy heavy machinery packaging?
The 7 layers are: (1) VCI paper wrapping, (2) VCI poly film enclosure, (3) Aluminium barrier film vacuum sealing, (4) Container desiccants, (5) EPE/EVA foam cushioning, (6) ISPM-15 heat-treated wooden crate with bracing, and (7) Container lashing with impact and tilt indicators.
Is ISPM-15 mandatory for exporting machinery from India?
Yes. ISPM-15 is mandatory for all solid wood packaging thicker than 6mm in international trade. Wood must be heat-treated to 56°C core temperature for 30 minutes and stamped with the IPPC mark. Non-compliance results in shipment rejection, quarantine, or destruction at the destination port.
How does VCI film protect machinery during ocean shipping?
VCI film releases invisible corrosion-inhibiting molecules that settle on all exposed metal surfaces inside the sealed package. These molecules form a self-healing barrier that blocks the electrochemical corrosion reaction. BENZ VCI films carry OEM certifications from BMW, Volkswagen, Daimler (Mercedes-Benz), GM, and Volvo.
What types of heavy machinery can BENZ package?
BENZ handles CNC machines, lathes, milling machines, press machines, injection moulding machines, compressors, generators (DG sets), boilers, turbines, transformers, chiller units, industrial pumps, conveyor systems, MRI/medical machines, and heavy printing presses — from 500 kg to 100+ tons.
How much does heavy machinery export packaging cost in India?
Costs depend on equipment size, weight, destination, and protection level. Domestic shipments range from ?15,000–?2,00,000. Export seaworthy packaging with VCI, barrier film, and custom crating ranges from ?50,000–?10,00,000+. Contact BENZ for a free site survey and detailed cost estimate.
