What Is Aluminium Barrier Film Packaging?

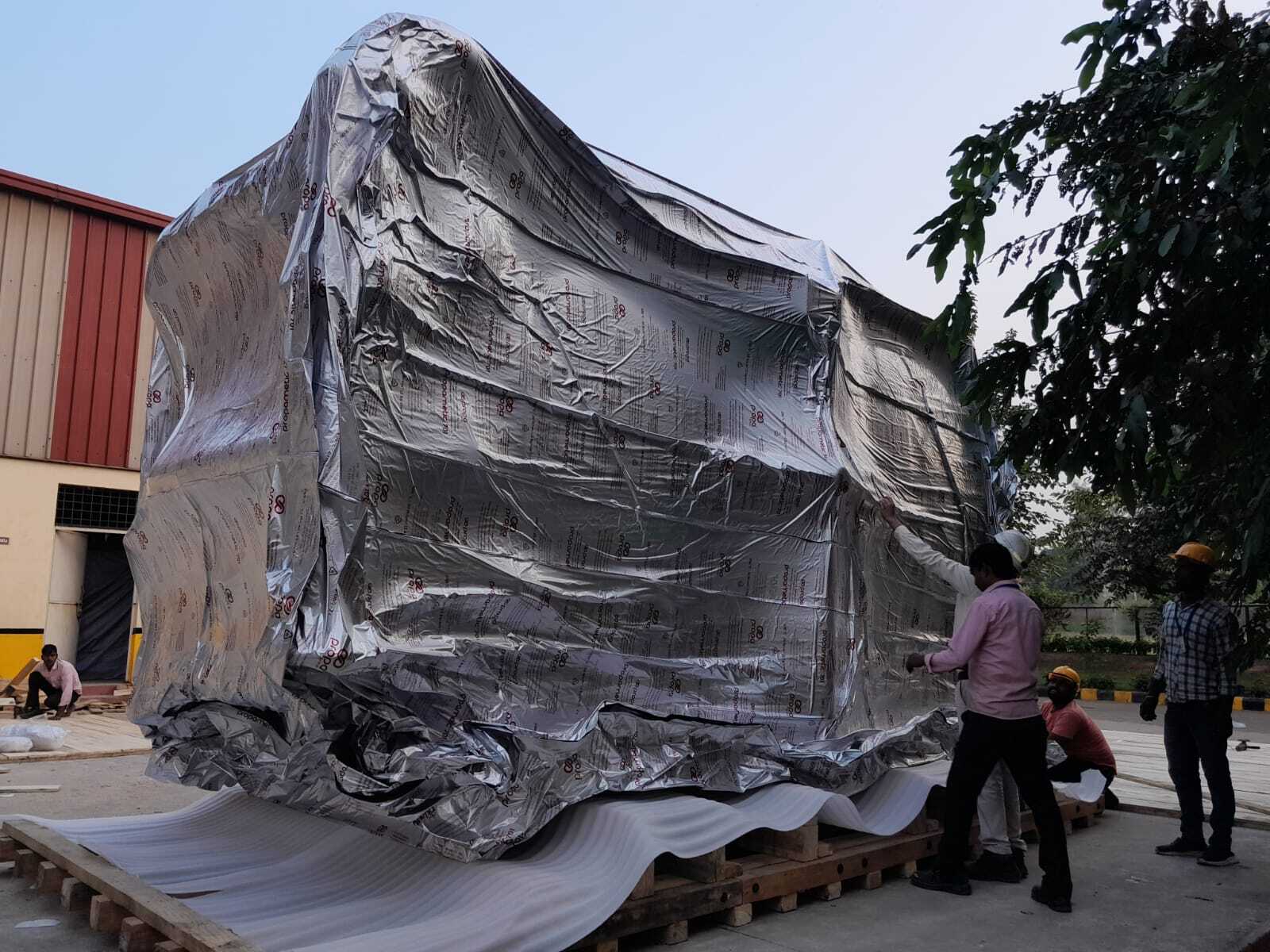

Aluminium barrier film packaging is a multi-layer composite material that creates a hermetically sealed, moisture-impermeable enclosure around industrial equipment and heavy machinery during international shipping or long-term storage. Unlike standard polyethylene wrap or stretch film — which allow significant moisture transmission — aluminium barrier film incorporates a layer of aluminium foil that blocks water vapor almost entirely. A typical 4-layer construction consists of polyethylene (inner sealant layer) + aluminium foil (moisture barrier) + woven scrim (tear reinforcement) + polyester (outer protection). This composite achieves a water vapor transmission rate (WVTR) of less than 0.01 g/m²/day — making it 100x to 500x more effective than standard packaging film. For manufacturers exporting precision machinery through humid ocean routes, or storing equipment in warehouses for months or years, aluminium barrier film is the critical layer that separates protected equipment from catastrophic corrosion damage.
Why Standard Packaging Film Fails During Ocean Freight
| Material | WVTR (g/m²/day) | Ocean Freight Grade? | Notes |
|---|
| Standard LDPE Film | 1.0 – 5.0 | No | Moisture passes through freely. Fails within 5–7 days at sea. |
| HDPE Film | 0.3 – 1.0 | No | Better than LDPE but still inadequate for 30+ day voyages. |
| Metallized PET Film | 0.05 – 0.1 | Marginal | Thin metal layer can crack when flexed, losing barrier integrity. |
| BENZ 4-Layer Aluminium Barrier Film | < 0.01 | Yes | Complete moisture impermeability. Proven for 30–60 day ocean freight and 5+ year storage. |
BENZ 4-Layer Aluminium Barrier Film is specifically engineered for the extreme demands of ocean freight and long-term industrial storage. The aluminium foil layer provides the moisture barrier, the polyethylene inner layer allows heat sealing, the woven scrim prevents tearing during handling, and the polyester outer layer provides chemical and abrasion resistance.
The 4-Layer Construction: How It Works
Each layer in BENZ 4-Layer Barrier Film serves a specific engineering function:
- Inner Layer — Polyethylene (PE): The heat-sealable layer that allows barrier bags and sheets to be thermally welded into airtight enclosures. Creates the hermetic seal.
- Barrier Layer — Aluminium Foil (Al): The active moisture barrier. Aluminium is one of the few materials that achieves near-zero WVTR. The foil blocks water vapor, oxygen, and light from reaching the enclosed equipment.
- Reinforcement Layer — Woven Scrim: Cross-laminated polyethylene scrim provides exceptional tear resistance and puncture resistance. Prevents the thin aluminium foil from being damaged during handling, crane operations, and container loading.
- Outer Layer — Polyester (PET): Provides mechanical protection, abrasion resistance, and a printable surface for labeling and identification marks.
When Is Barrier Film Packaging Mandatory?
Barrier film is not needed for every shipment. Here is a decision framework based on BENZ Packaging's 40+ years of global export packaging experience:
| Scenario | Barrier Film Needed? | Why |
|---|
| Domestic road/rail shipment (1–7 days) | No | Short transit, ambient humidity manageable with VCI alone |
| Short sea freight (< 14 days) | Recommended | Container humidity rises quickly, especially in tropical waters |
| Ocean freight > 14 days | Mandatory | Container rain + sustained 90%+ RH overwhelms VCI and standard film |
| High-humidity destinations (SE Asia, Middle East, West Africa) | Mandatory | Ambient humidity 80%+ persists after container unloading |
| Long-term warehouse storage (3+ months) | Mandatory | Extended exposure to ambient humidity cycles causes cumulative corrosion |
| High-value precision machinery (> $100,000) | Mandatory | Cost of corrosion damage exceeds cost of barrier protection by 10–100x |
The Integrated Barrier + VCI + Desiccant System
Barrier film alone blocks moisture ingress but provides no corrosion inhibition for residual moisture already inside the package. VCI provides corrosion inhibition but limited moisture blocking. Maximum protection comes from combining all three:
- VCI Paper + VCI Film — wraps and encloses the equipment, providing vapor-phase corrosion protection to all metal surfaces
- 4-Layer Aluminium Barrier Film — seals around the VCI-wrapped equipment, creating an impermeable moisture fortress
- Container Desiccants (Propadry) — placed inside the barrier, absorbing up to 300% of their weight in residual moisture to maintain < 40% RH
- Humidity Indicator Cards (HICs) — visual confirmation that internal conditions remained safe throughout transit
This 4-component system is the gold standard for export machinery protection. It is the exact system BENZ Packaging deploys for automotive OEMs, power equipment manufacturers, defense contractors, and aerospace companies across 55+ countries worldwide.
Vacuum Packaging vs Standard Barrier Packaging
| Feature | Vacuum Packaging | Standard Barrier + Desiccant |
|---|
| Air removal | Mechanically extracted to near-vacuum | Air remains, desiccants absorb moisture |
| Best for | Smaller components, spare parts, precision instruments | Large machinery, heavy equipment, bulk shipments |
| Equipment needed | Industrial vacuum pump + sealer | Heat sealer (impulse or hot-air) |
| Practical limit | Difficult above ~2 m³ enclosed volume | No size limit — works for any equipment size |
| Protection level | Excellent (near-zero O2 and moisture) | Excellent (with adequate desiccants) |
BENZ Barrier Film Product Range
BENZ Packaging manufactures the complete range of aluminium barrier solutions to match every protection requirement:
- 4-Layer Barrier Film: PE + Al + Scrim + PET — the standard for ocean freight and long-term storage. WVTR < 0.01 g/m²/day.
- Alu-Bubble Barrier Insulation: Barrier film with integrated bubble insulation — combines moisture protection with thermal insulation for temperature-sensitive shipments.
- 3D Vacuum Foil Bags: Pre-formed 3D barrier bags for components and smaller equipment. Ready to use — insert equipment, add desiccants, vacuum-seal or heat-seal.
BENZ Packaging: Global Barrier Packaging Experts
With 40+ years of export packaging experience and operations serving 55+ countries across 6 continents, BENZ Packaging provides integrated moisture and corrosion protection systems for manufacturers in automotive, aerospace, defense, power generation, oil and gas, and heavy engineering sectors worldwide. Our barrier film products are combined with MIL-PRF-3420H-certified VCI Paper, OEM-approved VCI Film, and Propadry Desiccants to deliver the industry's most comprehensive moisture and corrosion protection system.
For barrier film packaging solutions, contact BENZ Packaging or call +91-98991-44488.
Frequently Asked Questions
What is aluminium barrier film packaging?
It is a multi-layer composite (PE + aluminium + scrim + polyester) that creates a hermetically sealed, moisture-impermeable enclosure around equipment. With a WVTR < 0.01 g/m²/day, it is 100–500x more effective than standard packaging film.
When is barrier film packaging mandatory?
For ocean freight over 14 days, shipments to high-humidity destinations (SE Asia, Middle East, Africa), long-term storage (3+ months), and any high-value precision machinery where corrosion damage cost exceeds barrier cost.
What is WVTR and why does it matter?
WVTR (Water Vapor Transmission Rate) measures moisture passing through a material per m²/day. Standard PE film: 1–5 g/m²/day. BENZ 4-Layer Barrier Film: < 0.01 g/m²/day.
Should barrier film be used with VCI?
Yes. Barrier film blocks external moisture but provides no corrosion inhibition. VCI protects against residual internal moisture. Together — with desiccants — they form the gold standard for export protection.
How long does barrier film protection last?
With proper VCI + desiccants, 3–5 years in storage. For military/strategic reserves, 10+ years with periodic desiccant replacement.
Vacuum packaging vs standard barrier: which is better?
Vacuum packaging mechanically removes air, ideal for smaller components. Standard barrier + desiccant works for any size, including 100+ tonne machinery. Both achieve excellent protection when properly executed.
