Why Does Machinery Rust During Ocean Shipping?
Corrosion during ocean freight is the single largest cause of preventable damage to exported industrial machinery worldwide. A steel shipping container on an ocean vessel is, in effect, a corrosion accelerator. During a typical 30-day sea voyage, the combination of extreme humidity (90%+ RH), salt-laden sea air, temperature cycling (15°C–60°C), and industrial pollutants at loading ports creates ideal conditions for rapid electrochemical corrosion. Without proper protection, rust can begin forming on bare steel surfaces within 24 hours of container sealing. By the time the container arrives at its destination port — often 30 to 60 days later — precision-machined surfaces such as spindles, ballscrews, bearing seats, and gear teeth can be irreparably damaged. The cost of corrosion damage frequently equals 30–50% of the machine's total value, with precision recalibration often impossible after severe pitting.
What Is VCI? — The Science of Vapor-Phase Corrosion Inhibition
VCI (Volatile Corrosion Inhibitor) is a class of chemical compounds that continuously emit invisible protective molecules into the air inside a sealed package. These molecules travel through the internal atmosphere and adsorb onto all exposed metal surfaces — including deep cavities, threaded holes, hydraulic ports, gear teeth, and internal channels that no liquid oil, grease, or paint can reach. Once adsorbed, the VCI molecules form a self-healing barrier just 1–2 molecules thick that blocks the electrochemical reaction between metal, moisture, and oxygen — the three ingredients required for rust to form. As long as the package remains sealed, VCI molecules continuously circulate, providing persistent, self-replenishing corrosion protection throughout the entire transit period and beyond. When the package is opened, the VCI evaporates harmlessly, leaving behind clean, ready-to-use metal surfaces that require no cleaning or degreasing before commissioning.
VCI Packaging Products: Which Type for Which Application?
| VCI Product | What It Is | Best Application | BENZ Product |
|---|
| VCI Plain Paper | Kraft paper infused with VCI compounds (55–65 GSM) | Wrapping flat metal surfaces, machine beds, slideways, shafts | BENZ VCI Plain Paper |
| Poly-Coated VCI Paper | VCI paper with polyethylene laminate (75–85 GSM) | Moisture-prone environments, double-duty moisture + corrosion barrier | BENZ Poly-Coated VCI Paper |
| VCI Crepe Paper | Stretchable crinkled VCI paper (110–120 GSM) | Complex geometries — spindles, bearings, gears, impellers, threaded parts | BENZ VCI Crepe Paper |
| VCI HD Reinforced Paper | Heavy-duty VCI paper with scrim reinforcement (135–180 GSM) | Defense equipment, heavy engineering, extreme-duty applications | BENZ VCI HD Paper |
| Multi-Metal VCI Film | Polyethylene film with VCI for all metal types | Enclosing entire machines — heat-sealed to create corrosion-free microenvironment | BENZ Multi-Metal VCI Film |
| VCI Emitters | Self-adhesive VCI capsules or cups | Enclosed compartments — electrical cabinets, hydraulic units, toolboxes | BENZ VCI Emitters |
| VCI Bags | Pre-formed VCI poly bags | Small parts, spare parts kits, fasteners, tools | BENZ VCI Bags |
VCI vs Traditional Rust Prevention for Export Machinery
| Factor | VCI Packaging | Oil / Grease | Wax Coating |
|---|
| Application | Wrap or enclose — no surface contact needed | Must be applied to every surface | Must be sprayed/dipped |
| Internal cavities | Vapor reaches everywhere | Cannot reach blind holes, internal channels | Cannot reach enclosed spaces |
| Removal at destination | None — VCI evaporates when opened | Solvent cleaning required | Heat/solvent removal needed |
| Labour | Low — wrap and seal | High — apply, inspect, clean | High — apply, cure, remove |
| Environmental | Non-toxic, recyclable | Hazardous waste from solvents | Chemical waste from removal |
| Multi-metal | Single formulation protects all metals | Different oils for different metals | May not suit all metals |
| Ocean freight grade | When combined with barrier film + desiccants | Overwhelmed by high humidity over time | Can crack in temperature cycling |
The Integrated VCI Protection System for Export Machinery
For ocean freight, VCI alone is not sufficient. The extreme humidity and temperature cycling at sea require an integrated multi-layer system that combines VCI with physical moisture barriers:
- VCI Paper — wraps directly around precision metal surfaces (innermost layer)

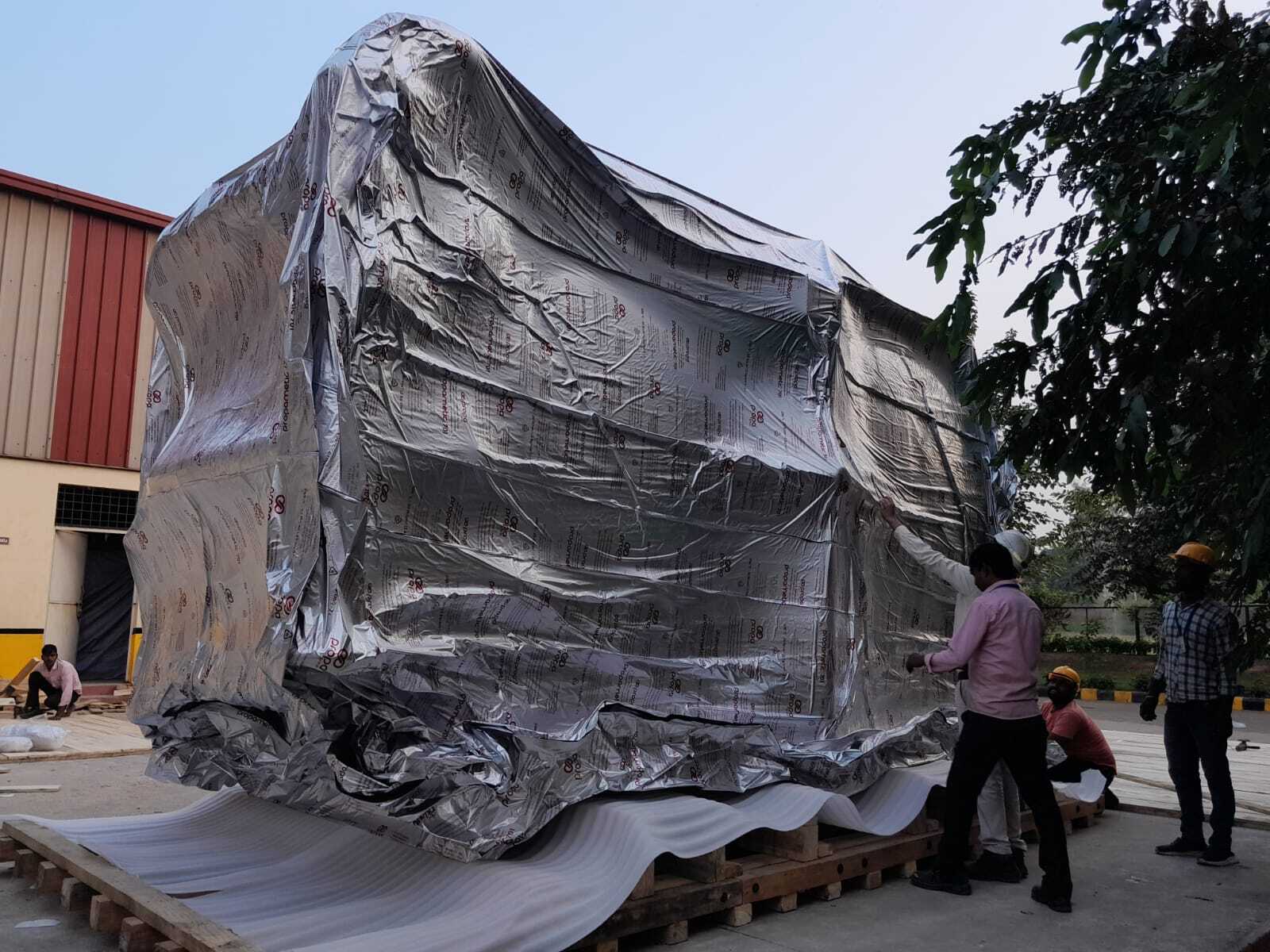

- VCI Film — heat-sealed enclosure around the entire machine (chemical + physical barrier)
- Aluminium Barrier Film — impermeable moisture fortress (WVTR < 0.01 g/m²/day)
- Container Desiccants — active humidity absorption maintaining <40% RH
- Humidity Indicator Cards — visual monitoring confirming conditions stayed safe
This integrated system is what BENZ deploys for every piece of export machinery — from CNC machines shipped to Germany to turbines shipped to the Middle East and transformers shipped to Southeast Asia.
6 Common VCI Packaging Mistakes (And How to Avoid Them)
- Using VCI paper without VCI film: VCI paper protects the surface it touches. Without a sealed VCI film enclosure, there is no enclosed atmosphere for VCI vapors to circulate — leaving 60% of metal surfaces unprotected.
- Not sealing the VCI film properly: VCI film must be heat-sealed at every seam. Tape closures allow moisture ingress and VCI vapor escape. One unsealed seam can void the entire protection.
- Skipping barrier film for ocean freight: VCI film alone handles domestic humidity (60-70% RH). Ocean freight humidity (90%+ RH) overwhelms VCI chemistry within 2 weeks. Barrier film is mandatory for sea shipment.
- Packaging wet or oily surfaces: Metal surfaces must be clean and dry before wrapping in VCI. Residual coolant, oil, or condensation creates a liquid layer that VCI vapors cannot penetrate, leading to under-film corrosion.
- Using generic VCI on mixed metals: Standard VCI formulations protect only ferrous metals (steel/iron). Using them on multi-metal machinery (aluminum covers, copper wiring, brass fittings) can actually accelerate corrosion on non-ferrous metals. Always use multi-metal VCI.
- Placing absorbent materials between VCI and metal: Cardboard, untreated kraft paper, or foam placed directly between VCI packaging and the metal surface absorbs VCI molecules, depleting protection. Always place VCI in direct proximity to the metal.
BENZ VCI Certifications: Why They Matter
Not all VCI packaging is equal. The quality of VCI chemistry, the concentration of active compounds, and the consistency of manufacturing directly affect protection duration and reliability. BENZ VCI products are among the most rigorously tested and globally certified in the market:
- MIL-PRF-3420H: US Department of Defense military specification for VCI packaging material — the gold standard for corrosion protection testing. Requires passing 30+ individual test parameters including humidity chamber, salt spray, and outdoor weathering.
- 11 Global Automotive OEM Approvals: BENZ VCI Paper and Film are approved by BMW, Volkswagen, Audi, Daimler (Mercedes-Benz), General Motors, Volvo, Scania, MAN, Renault, Ford, and Caterpillar — manufacturers who subject VCI materials to their own rigorous testing before approval.
- ISO 9001:2015 / ISO 14001:2015: Quality management and environmental management system certifications ensuring consistent manufacturing and environmental responsibility.
These certifications mean that when you specify BENZ VCI packaging for your exported machinery, you are using the same corrosion protection trusted by the world's most demanding automotive and industrial manufacturers across 55+ countries and 6 continents.
BENZ Packaging: Global VCI Corrosion Protection Leader
With 40+ years of experience in industrial corrosion protection, BENZ Packaging manufactures and supplies the complete range of VCI products — from VCI Paper and VCI Film to VCI Emitters and Rust Preventive Oils — to manufacturers across automotive, aerospace, defense, power generation, oil and gas, and general heavy engineering sectors worldwide.
For VCI packaging solutions, contact BENZ Packaging or call +91-98991-44488.
Frequently Asked Questions
How does VCI packaging prevent rust on machinery?
VCI packaging emits invisible protective molecules that travel through air and adsorb onto all exposed metal surfaces — including deep cavities and internal channels. These molecules form a self-healing barrier that blocks the electrochemical corrosion reaction. As long as the package is sealed, VCI provides continuous, self-replenishing protection.
What is the difference between VCI paper and VCI film?
VCI paper (kraft paper infused with VCI) wraps individual metal surfaces. VCI film (polyethylene embedded with VCI) heat-seals around the entire machine. Both are used together in export packaging: paper for direct surface protection, film for creating the sealed corrosion-free environment.
How long does VCI protection last?
With VCI film + barrier film + desiccants, protection lasts 3–5 years. For 30–60 day ocean freight, VCI paper + VCI film is sufficient. The key is maintaining a sealed environment for the VCI vapors to circulate.
Can VCI protect multiple metals at once?
Yes. BENZ Multi-Metal VCI Film protects steel, iron, aluminium, copper, brass, bronze, and galvanized surfaces simultaneously — critical for machinery containing multiple metal types.
Is VCI packaging environmentally friendly?
Yes. Modern VCI formulations are non-toxic and contain no heavy metals, nitrites, or phosphates. VCI paper is recyclable with standard paper streams. Unlike oil-based rust preventatives, VCI eliminates solvent cleaning at the destination. BENZ holds ISO 14001:2015 environmental certification.
What VCI certifications should I look for?
Look for MIL-PRF-3420H (US military VCI specification), OEM approvals from major manufacturers (BMW, VW, Daimler, GM, Volvo), and ISO corrosion testing certifications. BENZ VCI Paper carries all of these — making it one of the most extensively certified VCI papers globally.
