What Is Industrial Equipment Crating?
Industrial equipment crating is the engineering discipline of designing and constructing custom protective enclosures — wooden crates, skids, frameworks, and pallets — to secure heavy machinery and industrial equipment for safe transport, export, or long-term storage. Unlike consumer packaging where standard boxes suffice, industrial crating requires structural engineering calculations tailored to the specific weight, dimensions, center of gravity, vibration sensitivity, and environmental vulnerability of each piece of equipment. A properly engineered industrial crate does three things simultaneously: it distributes the equipment's weight for safe handling by forklifts, cranes, and container systems; it immobilizes the equipment through internal bracing and bolting to prevent movement during transit; and it provides a weatherproof structural shell that, combined with internal corrosion and moisture protection, keeps the equipment pristine through weeks or months of shipping and storage. BENZ Packaging provides complete industrial crating services — from engineering design to on-site construction — for equipment ranging from 500 kg precision instruments to 100+ tonne power generation units, serving manufacturers across 55+ countries.
Types of Industrial Crates
| Crate Type | Description | Best For | BENZ Product |
|---|
| Closed Box Crate | Fully enclosed on all 6 sides. Maximum protection from weather, dust, and handling. | Ocean freight (standard container), high-value machinery, precision equipment | Plywood Boxes / Pinewood Boxes |
| Open Crate (Skeletal) | Open top and/or sides. Allows crane access and visual inspection. | Oversized equipment on flat-rack containers, heavy items requiring top-loading | Custom-built to equipment dimensions |
| Skid / Pallet Mount | Equipment bolted to heavy timber base without enclosure. | Short domestic moves, equipment loaded directly into climate-controlled transport | Wooden Pallets / Timber Skids |

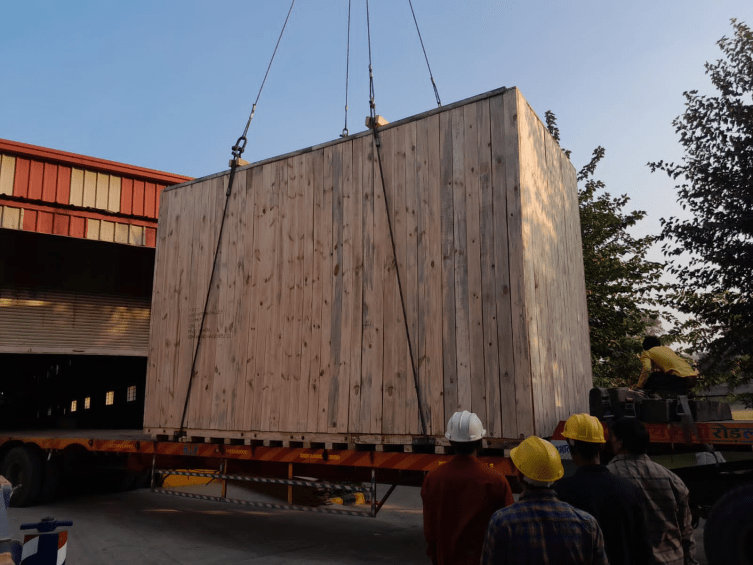

| Heavy-Duty Structural Crate | Steel-reinforced wood construction for extreme weights (20+ tonnes). | Transformers, turbines, press machines, mining equipment | Custom steel + timber + bolted base |
Wood Selection: Solid Wood vs Plywood
| Property | Solid Pinewood | Plywood |
|---|
| Strength | Excellent — handles extreme loads | Good — suitable for most machinery |
| ISPM-15 | Requires heat treatment + IPPC stamp | Exempt — no treatment needed |
| Weight | Heavier | Lighter — saves freight costs |
| Customs risk | Requires valid IPPC mark for export | Zero compliance risk |
| Cost | Higher (wood + treatment cost) | Competitive |
| Best for | Extremely heavy loads (20+ tonnes) | Standard machinery (up to ~20 tonnes) |
BENZ Recommendation: For most export machinery shipments, BENZ Plywood Boxes provide the ideal combination of strength, ISPM-15 exemption, lighter weight (reducing freight costs), and zero customs compliance risk. For equipment exceeding 20 tonnes, BENZ Pinewood Crates with ISPM-15 heat treatment and IPPC marking provide the structural strength required.
What Is On-Site Packing? — The BENZ Process
On-site packing is a turnkey service where the packaging provider deploys their entire crew, materials, equipment, and expertise directly to your factory floor. The machinery is packed where it stands — eliminating the need to transport unprotected equipment to a separate packaging facility (which introduces handling risk and additional cost).
Here is exactly what happens during a BENZ on-site packing operation:
- Pre-Visit Site Survey (Free): A BENZ packaging engineer visits your facility to assess equipment dimensions, weight, center of gravity, lifting points, fragility, and specific requirements (fluid drainage, component removal, ESD sensitivity). Photographs and measurements are taken for CAD design.
- Custom Packaging Design: Based on the site survey, our engineering team creates a detailed packaging specification — materials list, layer sequence (VCI + barrier + foam + crate), structural calculations, and cost breakdown. You approve the design before work begins.
- Crew Deployment: On the scheduled date, a trained BENZ packaging crew (typically 8–20 members depending on equipment size) arrives at your facility with:
- All packaging materials — VCI Paper, VCI Film, barrier film, desiccants, foam
- Pre-built crate components (sides, base, bracing) ready for assembly
- Tools and equipment — heat sealers, impact wrenches, measuring instruments
- Mobile crane / forklift if required
- Machine Preparation: Fluid drainage, electrical disconnection, component removal, and surface cleaning performed by the BENZ crew (or coordinated with your maintenance team for specialized equipment).
- Multi-Layer Packaging: The complete protection system is applied layer by layer — VCI wrapping ? VCI film enclosure ? barrier film sealing ? desiccant placement ? foam cushioning ? crate assembly and bolting.
- Quality Inspection: A multi-point checklist is completed. Impact indicators, tilt indicators, and humidity indicator cards (HICs) are installed. All seals verified. Photographic documentation provided.
- Logistics Coordination: We coordinate with your freight forwarder for container loading, weight distribution, and lashing. All customs documentation — packing lists, ISPM-15 certificates, VCI material safety data sheets — is prepared and included.
How to Choose an Industrial Crating Provider: The 8-Point Evaluation
Not all crating companies are equal. Many are woodworkers who build boxes — without the engineering expertise for integrated corrosion protection, moisture barriers, and export compliance. Here is what separates a professional industrial packaging provider from a basic crate builder:
| # | Evaluation Criterion | Why It Matters | BENZ |
|---|
| 1 | ISPM-15 Certified | Mandatory for export. Non-compliant wood = shipment rejection | On-site kiln, IPPC marked |
| 2 | Integrated VCI + Barrier Capability | A box alone doesn't prevent rust. Corrosion protection must be built in. | MIL-PRF-3420H VCI + 4-layer barrier |
| 3 | On-Site Packing | Moving unprotected equipment to a crating shop introduces damage risk | Trained crew of 20+ |
| 4 | Insurance Coverage | If they damage your 3 crore CNC machine during packing, are they insured? | Comprehensive coverage |
| 5 | OEM Experience | Have they packed YOUR type of equipment before? | 11 OEM certifications, 40+ years |
| 6 | ISO 9001 / 14001 | Quality and environmental management system = consistent results | ISO 9001:2015 + ISO 14001:2015 |
| 7 | Documentation & Photography | Essential for insurance claims and customer acceptance at destination | Full photo + video documentation |
| 8 | Global Logistics Coordination | Packing is only half the job — container loading, lashing, and documentation matter equally | 55+ countries, forwarder coordination |
Inside the Crate: The Complete Protection Stack
A professional industrial crate is not just a wooden box — it is an integrated protection system. Here is what BENZ builds into every export crate:
- Layer 1 — VCI Paper: Wraps all precision metal surfaces. MIL-PRF-3420H-certified VCI compounds provide vapor-phase corrosion protection to spindles, shafts, bearing surfaces, and internal channels.
- Layer 2 — VCI Film: Heat-sealed around the entire machine. Creates a sealed corrosion-free microenvironment for all metal types (steel, aluminum, copper, brass).
- Layer 3 — Aluminium Barrier Film: 4-layer moisture fortress (WVTR < 0.01 g/m²/day). Blocks container rain and ambient humidity from reaching the equipment.
- Layer 4 — Desiccants (Propadry): Active moisture absorption maintaining internal humidity < 40% RH.
- Layer 5 — EPE / EVA Foam: Shock and vibration damping at all machine-to-crate contact points.
- Layer 6 — Structural Crate: Plywood or Pinewood, custom-built, internally braced and bolted.
- Layer 7 — Impact + Tilt Indicators + HICs: Monitoring devices documenting transit conditions for quality assurance and insurance evidence.
Industries Served by BENZ Crating Services
BENZ Packaging provides industrial crating and on-site packing for manufacturers across every major industrial sector:
- Automotive: CNC machines, press lines, robotic welding cells, paint booths — for OEMs in Germany, Japan, South Korea, USA, and Thailand
- Power Generation: Turbines, generators, transformers, boilers — for projects in the Middle East, Africa, and Southeast Asia
- Aerospace & Defense: Precision instruments, avionics, satellite components — requiring MIL-STD packaging with anti-static VCI film
- Oil & Gas: Compressors, pumps, valves, pipeline components — for offshore platforms and refineries worldwide
- Medical: MRI machines, CT scanners, linear accelerators — requiring shock-mounted crating and vibration isolation
- Semiconductor: Cleanroom equipment, wafer handling systems — requiring ESD-safe packaging with particle control
BENZ Packaging: Global Industrial Crating Leader
With 40+ years of packaging engineering experience, ISO 9001:2015 and ISO 14001:2015 certifications, 11 global OEM approvals, and operations serving 55+ countries, BENZ Packaging is a globally recognized leader in industrial equipment crating and on-site packing services. Our integrated approach — combining structural crating with MIL-PRF-3420H-certified VCI corrosion protection, aluminium barrier moisture sealing, and professional logistics coordination — ensures your equipment arrives at any destination in the world in pristine, commission-ready condition.
For industrial crating and on-site packing, contact BENZ Packaging or call +91-98991-44488. Free site surveys available globally.
Frequently Asked Questions
What is industrial equipment crating?
Industrial crating is the process of designing and building custom wooden crates engineered to the specific weight, dimensions, and fragility of each piece of equipment. Unlike standard packaging, industrial crates are structurally calculated for safe transport, export compliance, and integrated corrosion/moisture protection.
What is on-site packing for heavy machinery?
On-site packing is a turnkey service where the packaging provider deploys their crew, materials, and equipment directly to your factory. The machinery is packed where it stands — eliminating double handling and transport risk. BENZ deploys crews of 8–20 members with all materials, tools, and lifting equipment.
How much does industrial equipment crating cost?
For small-medium equipment (500 kg – 5 tonnes), domestic crating costs $300–$2,000 USD. For export-grade seaworthy crating (5–100+ tonnes), costs range from $2,000–$25,000+ USD. Contact BENZ for a free survey and quote.
What should I look for in a crating provider?
Key criteria: ISPM-15 certification, integrated VCI + barrier film capability, on-site packing, insurance, OEM experience, ISO certifications, documentation, and global logistics coordination. Many crate builders are woodworkers only — ensure your provider integrates corrosion and moisture protection.
What types of crates are used?
Closed box (full enclosure, best for ocean freight), open crate (for oversized/flat-rack equipment), skid mount (domestic moves), and heavy-duty structural crate (steel-reinforced, for 20+ tonne equipment).
Is ISPM-15 required for all wooden crates?
ISPM-15 applies to all solid wood over 6mm used in international trade. Plywood is exempt. BENZ offers both ISPM-15-certified pinewood crates and exempt plywood boxes.
