The Metallurgical Threat: The Mechanics of Marine Rust
To engineer a prevention system, one must understand the exact electrochemical mechanics of the threat. Corrosion on heavy machinery during sea freight is catalyzed by three intersecting variables:
- Chloride-Induced Depassivation: Marine atmospheres are heavily saturated with sodium chloride (salt) aerosols. When chlorides settle on an unprotected metal surface, they act as highly efficient electrolytes. They break down the metal's natural passive oxide layer, instantly catalyzing the anodic dissolution of iron into rust [Fe ? Fe²? + 2e?].
- Dew Point Physics & Container Rain: As a cargo vessel crosses diverse latitudes (e.g., leaving JNPT India for Hamburg), the unventilated steel container undergoes extreme diurnal thermal cycling. Warm, humid air inside the container cools rapidly at night. Once the internal temperature drops below the dew point, absolute humidity converts to liquid condensation. This "container rain" constantly bathes the machinery in oxygen-rich, highly corrosive water.
- The Microclimate Trap: Encasing machinery tightly in standard Linear Low-Density Polyethylene (LLDPE) shrink wrap without mathematically desiccating the internal volume creates a disastrous microclimate. It traps the ambient relative humidity (RH) against the metal. As external temperatures fluctuate, you have engineered a mobile greenhouse that perfectly accelerates oxidation.
The Engineered Solution: Stoichiometric Barrier Systems
You cannot alter the physics of trans-oceanic thermal cycling. Therefore, the engineering protocol dictates absolute isolation of the physical asset from the container macro-environment, while synthetically controlling the micro-environment within the envelope.
At BENZ Packaging, we utilize a military-spec, multi-phase passivating system to guarantee zero-defect delivery. This is why we are the trusted partner for India's largest heavy engineering exporters.
Phase 1: Vapor Phase Passivation (VCI Technology)
Before physical encapsulation, the machinery is draped with Propatech VCI (Volatile Corrosion Inhibitor) emitters. VCI compounds sublimate (transition from solid directly to vapor) into the enclosed air space. These molecules possess a strong polar affinity for metal substrates. They deposit onto all exposed surfaces—penetrating deep internal stators, inaccessible crevices, and delicate circuitry—forming a continuous, monomolecular passivation film.
The BENZ Guarantee: Our proprietary VCI physically displaces water molecules and alters the surface potential of the metal, abruptly halting the electrochemical oxidation cycle. Because the film is monomolecular, it does not alter machine tolerances or require degreasing upon arrival.
Phase 2: Empirical Desiccant Calibration
To neutralize the physical moisture inherent in the trapped air volume, we deploy high-absorption industrial desiccants (C-Dry or Propasec).

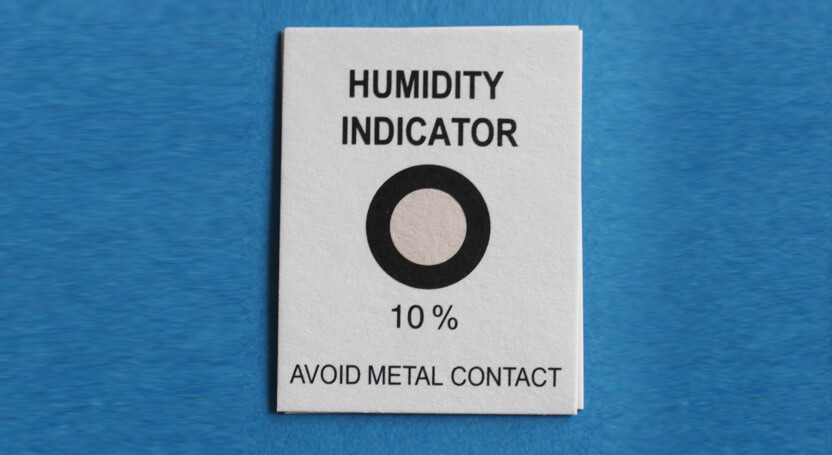

The BENZ Guarantee: We don't guess the required volume. BENZ engineers utilize established formulas (incorporating the barrier film's Water Vapor Transmission Rate, total internal volume, and transit duration in days) to calculate the precise mass of desiccant required. This guarantees the internal Relative Humidity (RH) remains permanently depressed below the 40% threshold—the critical point where atmospheric corrosion ceases.
Phase 3: Hermetic Vacuum Sealing (MIL-PRF-131K)
VCI and engineered desiccants are compromised if ambient air is allowed ongoing ingress.
The BENZ Guarantee: Our rapid-deployment sealing teams meticulously envelope the entire asset in a 4-layer, cross-laminated Aluminium Barrier Foil compliant with MIL-PRF-131K Class 1 specifications. The internal atmosphere is mechanically evacuated via vacuum, and all seams are hermetically heat-sealed to exact dwell-time tolerances. This yields an impermeable vault with an absolute-zero moisture transfer rate.
Phase 4: Structural Shock Mitigation
Finally, the sealed, passivated envelope is anchored to a custom-engineered, ISPM-15 certified timber superstructure.
The BENZ Guarantee: Our structural engineers calculate for load distribution and Center of Gravity (CG), protecting the delicate barrier membrane from stevedore mishandling, forklift punctures, and kinetic shock forces during port transfer.
Eliminate the Scrap Metal Liability
Pitting corrosion destroys micromillimeter tolerances, shorts critical circuitry, and triggers massive financial penalties via rejected deliveries. The capital expenditure for certified anti-corrosion engineering is fractional when compared to the devastating ROI of a compromised asset.
Is your current packaging scientifically verified against corrosion?
Relying on legacy crating methods for modern ocean freight is a critical liability. At BENZ Packaging, our rapid-response engineering teams architect custom anti-corrosion barrier solutions directly on your factory floor before your equipment is transferred to port.
